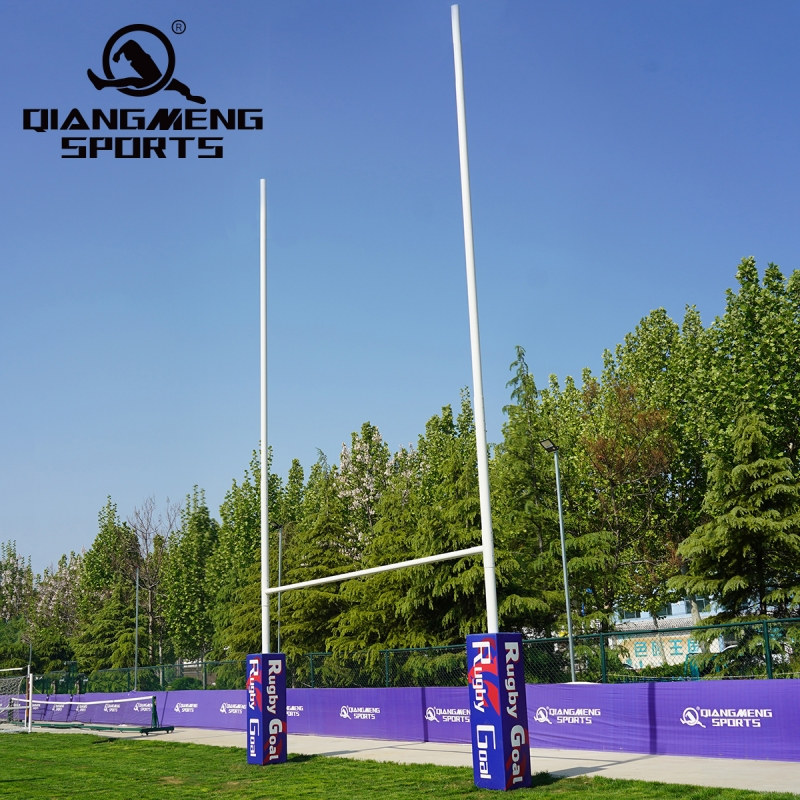

QMR-ALU130-13.5 Rugby Goalposts – Inground Ground-Socketed
Premium aluminium rugby goalposts with modular three-tier uprights and manual height adjustment
- Ground-socketed rugby goalposts for professional rugby grounds and stadiums, built from premium aluminium with a modular three-tier upright system. The special hinge design and dedicated lifting mechanism support manual height adjustment. Ground sockets are cast into concrete for a permanent installation.
Contact Us: info@qiangmengtiyu.com
YOU MAY ALSO NEED
Rugby Goal Structure | QMR-ALU130-13.5

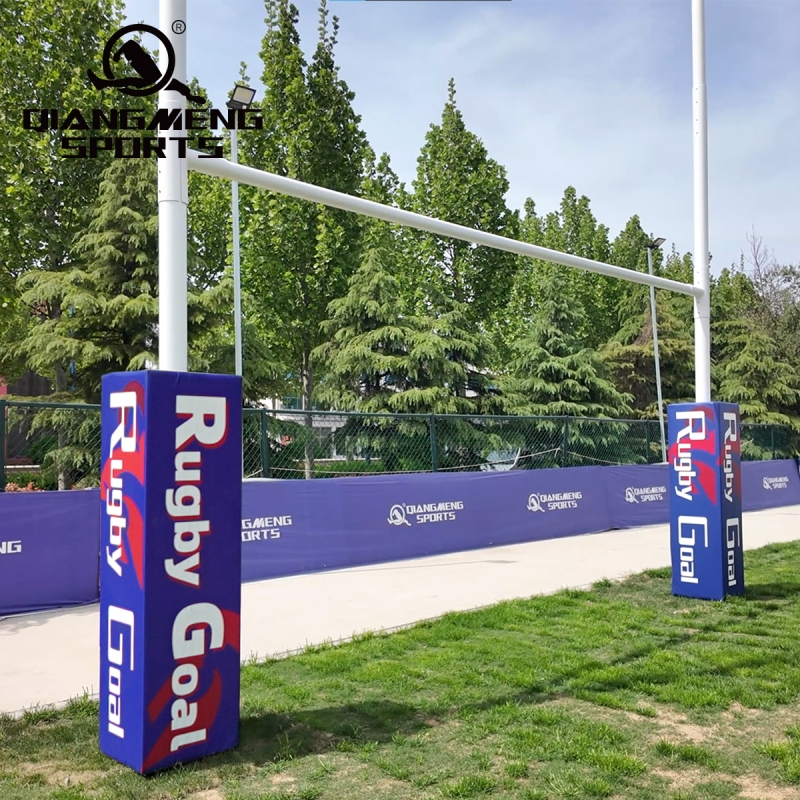

Premium Rugby Goal Padding
Durable padding with customizable logos and colors, providing clear branding and enhanced on-field safety.
Heavy-Duty Ground Base Design
Reinforced base with hinge structure for secure and easy installation.
Precision-Engineered Connection Joints
Strong aluminum joints ensure stable, long-lasting performance.
Overview
QMR-ALU130-13.5 is an inground rugby goal structure designed for professional rugby grounds and stadiums. It uses premium aluminium, ground sockets cast into concrete, a special hinge design and manual height adjustment with a dedicated lifting mechanism.
Key Product Advantages
Premium aluminium construction.
Ground-socketed installation; ground sockets are cast into concrete.
Modular three-tier upright system.
Push-fit/socketed connections reduce movement and improve stability.
Special hinge design and manual height adjustment with a dedicated lifting mechanism.
Optional 500 x 500 x 1,830 mm protective pad with logo.
Technical Specifications
| Rugby Goalposts | |
|---|---|
| Model | QMR-ALU130-13.5 |
| Product type | Inground / ground-socketed |
| Net weight | 195 kg per goalpost |
| Installation | Ground sockets cast into concrete |
| Surface treatment | Shot-blasted, galvanised and coated |
| Adjustment | Manual height adjustment with a dedicated lifting mechanism |
| Sections and Crossbar | |
| First-tier uprights | Ø133 mm x 5 m |
| Second-tier uprights | Ø120 mm x 5.5 m |
| Third-tier uprights | Ø112 mm x 4 m |
| Crossbar | Ø89 mm x 5.6 m |
| Optional protective pad | 500 x 500 x 1,830 mm, with logo |
Product Components
Components supplied
The component set includes:
4 embedded ground sockets
4 three-tier uprights
4 hinge kits
4 triangular cover plates
4 first-tier uprights
4 pipe caps
4 second-tier uprights
All bolts and fixings
Installation and Safety
Install the ground sockets cast into concrete and check that all connections, hinge kits, cover plates, pipe caps, bolts and fixings are correctly secured before use. Follow the installation instructions and use suitable lifting and handling procedures for the 195 kg per goalpost net weight. Inspect the rugby goalposts, sockets, connections and fixings before each use; keep people clear during installation, height adjustment and dismantling.
Recommended Applications
Professional rugby grounds and stadiums.
Request a Configuration
Contact us to request a configuration for your rugby ground or stadium.
