QMR-620COLRGH American Football Goalpost
Selectable upright spacing, adjustable offsets, rotating gooseneck, and lifting system
- American football goalpost with 18 ft 6 in / 23 ft 4 in selectable upright spacing, 6 ft / 8 ft offsets, 360-degree gooseneck rotation, ground anchoring system, and dedicated lifting system.
Contact Us: info@qiangmengtiyu.com
QMR-620COLRGH American Football Goalpost

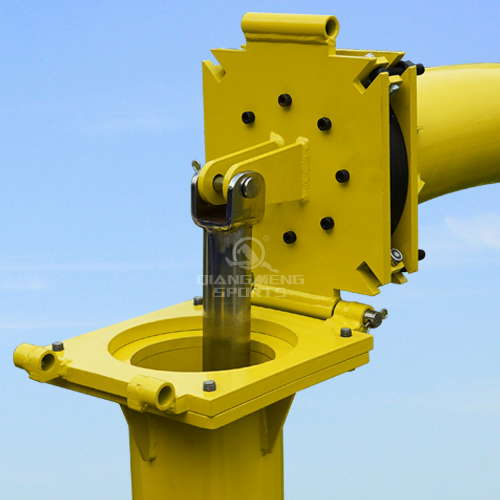

360° Gooseneck Rotation System
Reinforced steel flange allows the goalpost to rotate off the field with ease.

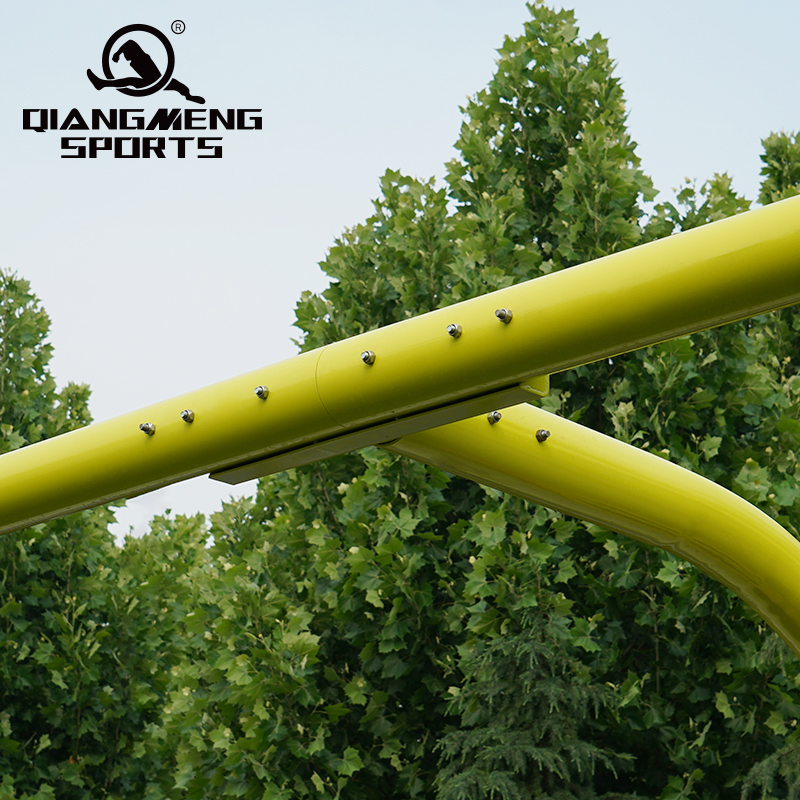

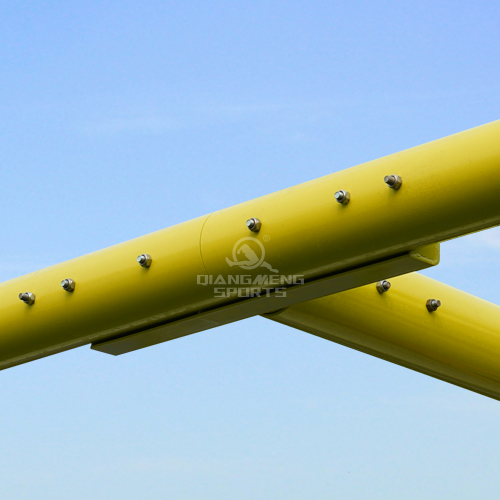

High-Strength Bolted Joint
Aluminum crossbar and uprights are secured with multi-point bolts for superior stability and wind resistance.

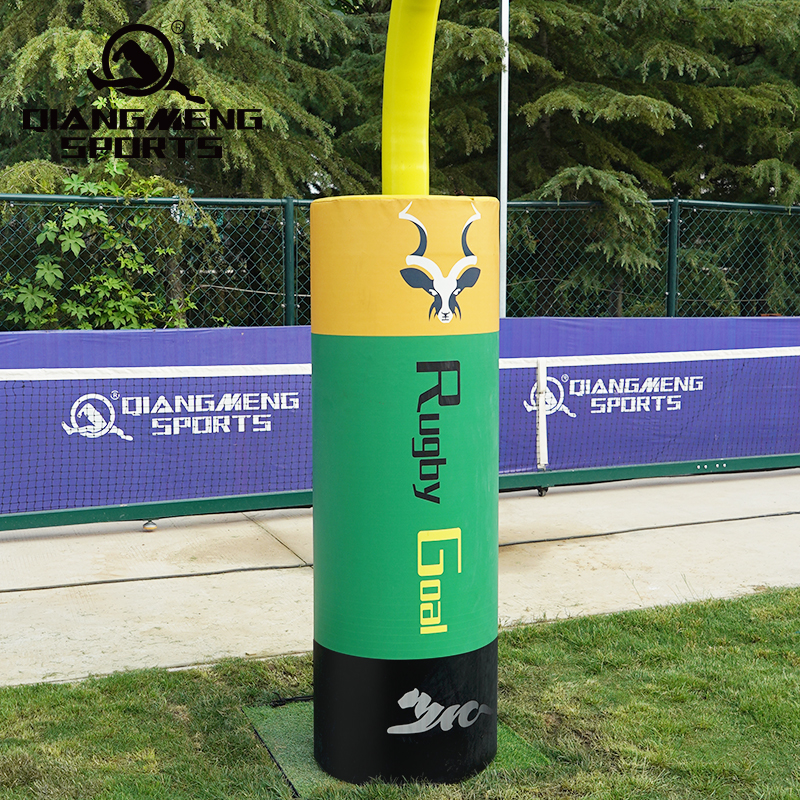

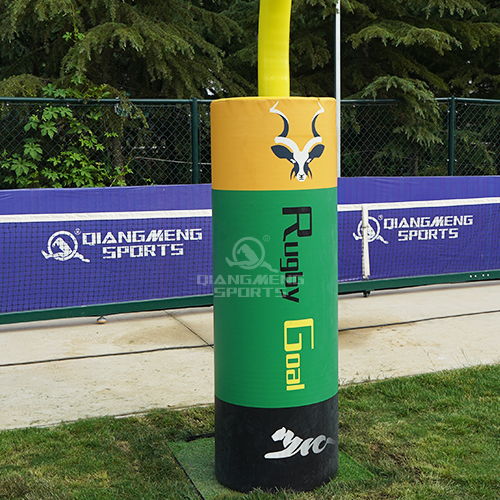

Full-Coverage Safety Padding
Thick rugby goalpost padding enhances safety and supports custom colors and graphics.
Overview

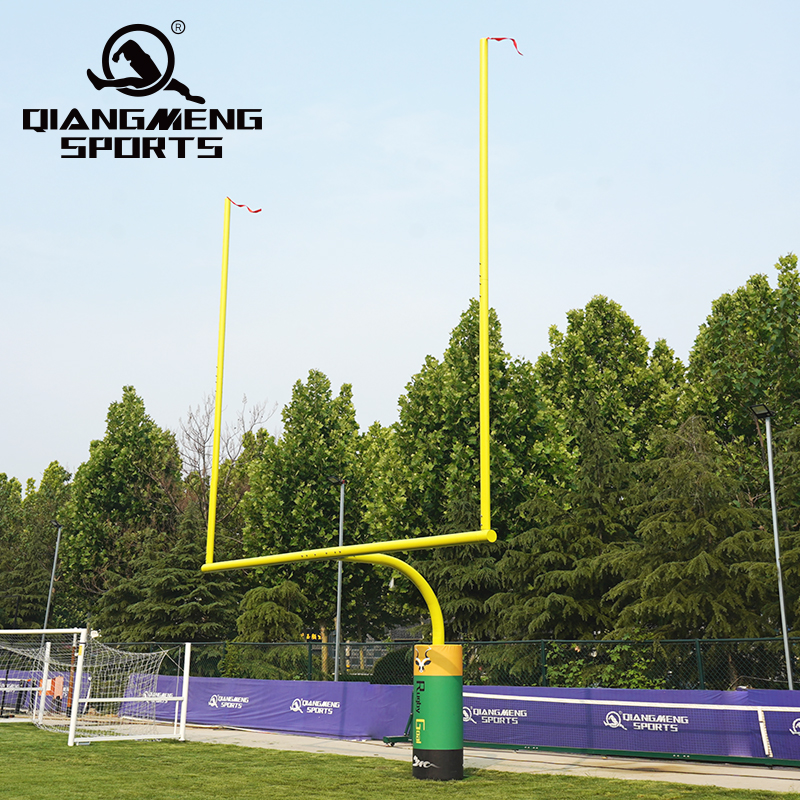

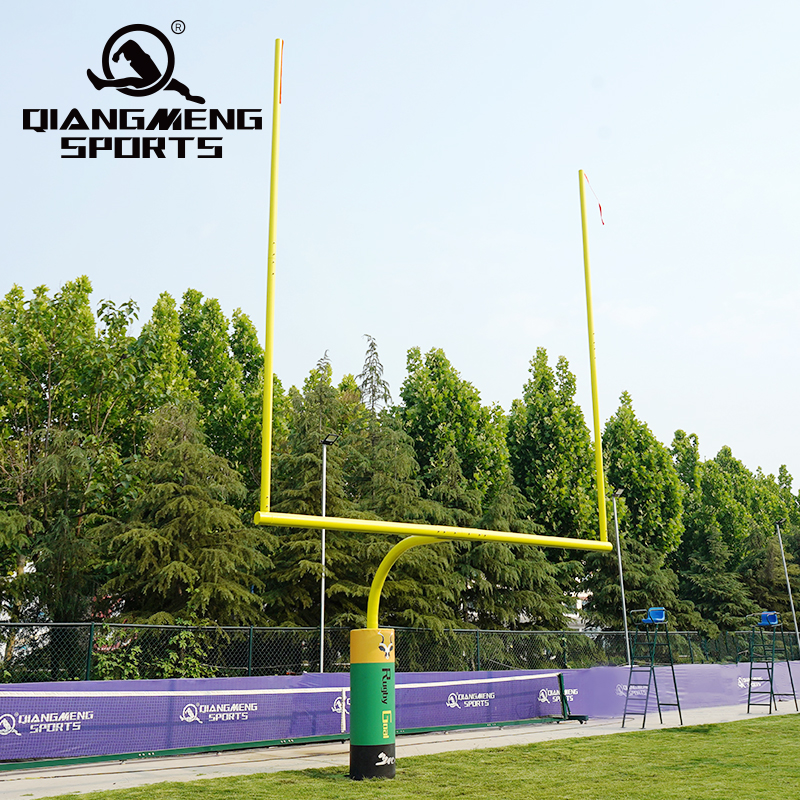

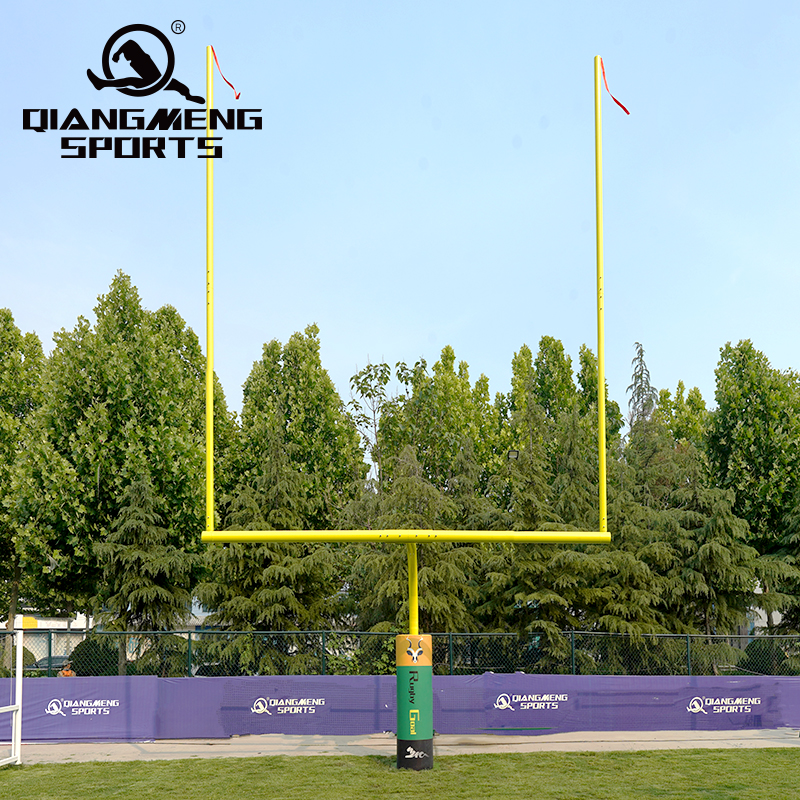

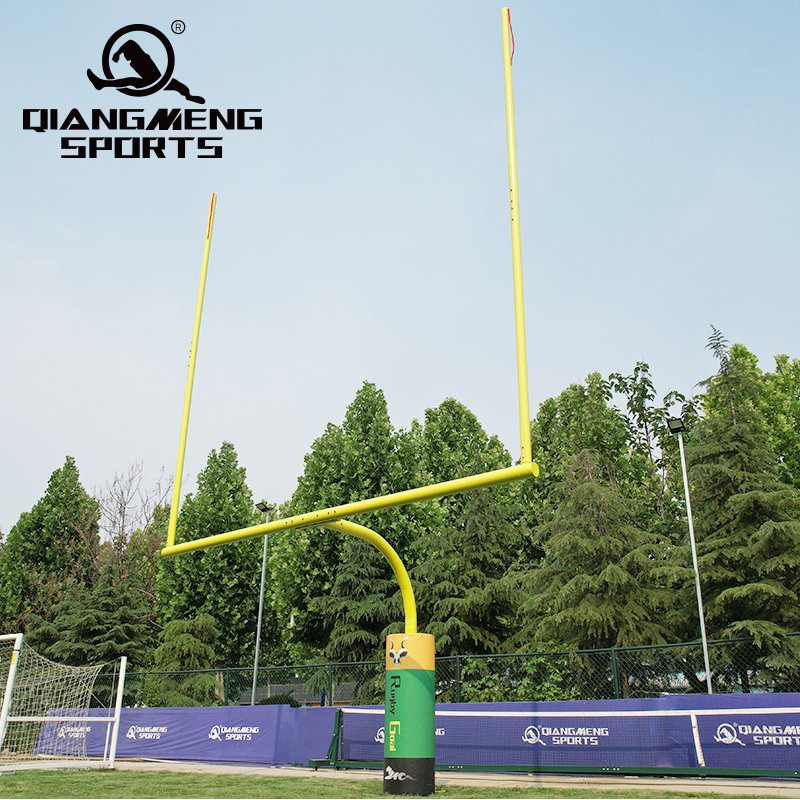

QMR-620COLRGH is an American football goalpost designed around a galvanized steel center post, aluminum crossbar and uprights, and a ground anchoring system with a welded steel flange. Selectable upright spacing, adjustable offsets, 360-degree gooseneck rotation, and a dedicated lifting system support different field layouts and handling requirements.
Key Features
Galvanized steel center post: 152 mm diameter.
Aluminum crossbar and uprights: 140 mm and 100 mm diameter options.
Selectable upright spacing: 18 ft 6 in (5.64 m) or 23 ft 4 in (7.11 m).

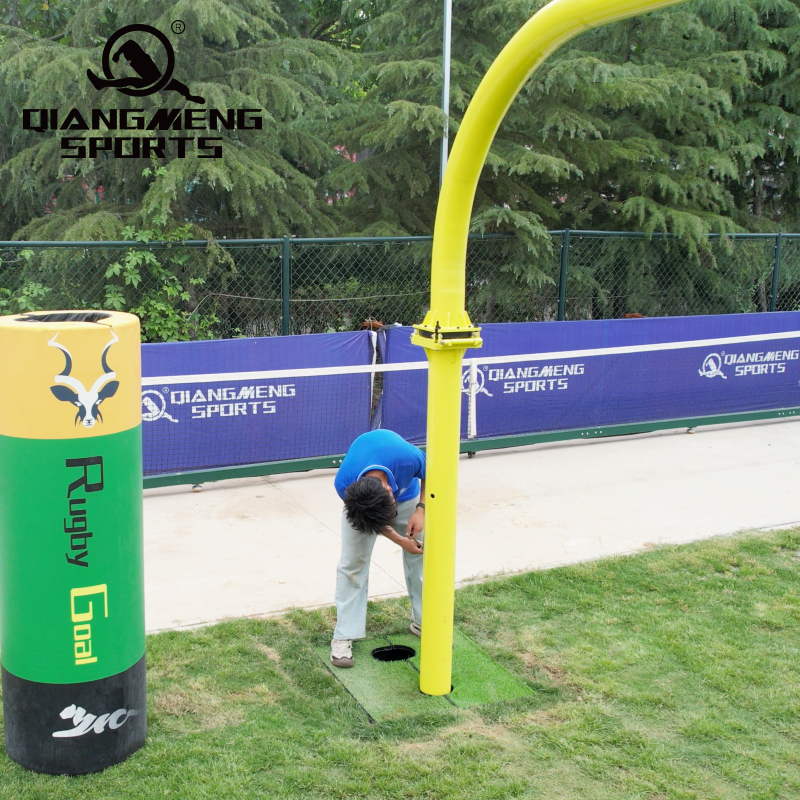

Ground anchoring system with a 12 mm welded steel flange; no ground sleeves are required for this anchoring design.
Adjustable offset options: 6 ft (1.83 m) or 8 ft (2.44 m).

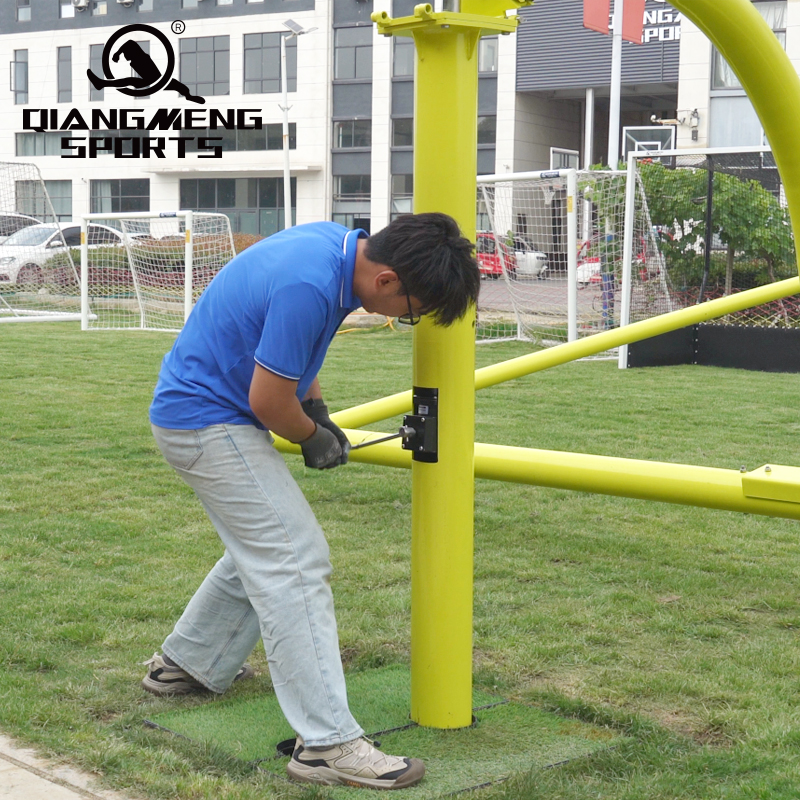

Dedicated lifting system for goalpost height adjustment.
360-degree gooseneck rotation for moving the goalpost off the field when required.
Galvanized fasteners and powder-coated finish.
Technical Specifications
| Specification | QMR-620COLRGH |
|---|---|
| Product type | American football goalpost |
| Center post | 152 mm galvanized steel |
| Crossbar and uprights | 140 mm / 100 mm aluminum |
| Selectable upright spacing | 18 ft 6 in (5.64 m) / 23 ft 4 in (7.11 m) |
| Offset | 6 ft (1.83 m) / 8 ft (2.44 m) |
| Anchoring | Ground anchoring system with 12 mm welded steel flange |
| Movement and handling | 360-degree gooseneck rotation and dedicated lifting system |
| Surface treatment | Galvanized fasteners and powder-coated finish |
Product Components
The goalpost configuration includes the center post, uprights, crossbar, gooseneck, ground anchoring system, welded steel flange, and lifting system.
Configuration Options
+Configuration details
Selectable upright spacing: 18 ft 6 in (5.64 m) or 23 ft 4 in (7.11 m).
Selectable offset: 6 ft (1.83 m) or 8 ft (2.44 m).

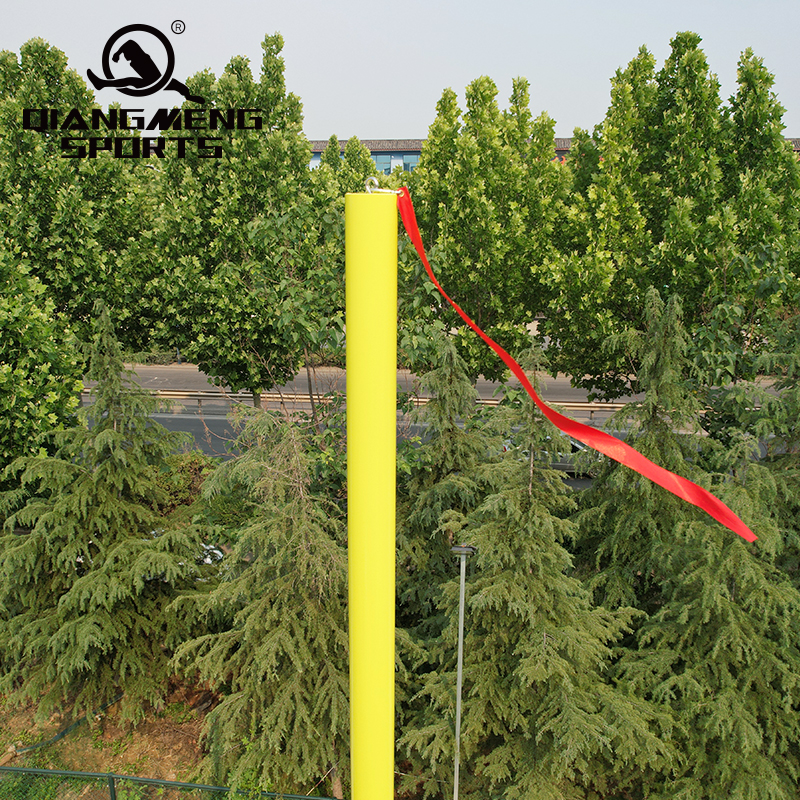

Wind flags: selectable configuration option.
Installation and Safety
Installation uses the ground anchoring system and embedded foundation or inspection boxes where specified for the project. Confirm the foundation, anchoring points, fasteners, gooseneck, uprights, and crossbar before use. Follow site-specific installation and safety procedures and use the dedicated lifting system only as directed by the responsible installation team.
Recommended Applications
Suitable for American football fields, training facilities, stadiums, and sports venues that require selectable upright spacing, adjustable offsets, and a rotating goalpost configuration.
Request a Quote
Request a quote for QMR-620COLRGH and specify the required upright spacing, offset, wind flag option, ground anchoring system, and lifting system configuration.
