FIFA-Certified Aluminium Box-Style Football Goal | QMF-1102-FIFA
FIFA-certified aluminium box-style football goal with a full-size 24 x 8 ft opening, 360° moving wheels and 8 x 12 kg counterweights.
- FIFA-certified football goal for 11-a-side senior matches and training, with a full-size 7.32 x 2.44 m / 24 x 8 ft box-style goal opening.
Contact Us: info@qiangmengtiyu.com
YOU MAY ALSO NEED
FIFA-CERTIFIED ALUMINIUM BOX-STYLE FOOTBALL GOAL
rear net supporting system ratchet system
soccer goal is equipped with rear net supporting poles and ratchet system which can easily adjust and tension net

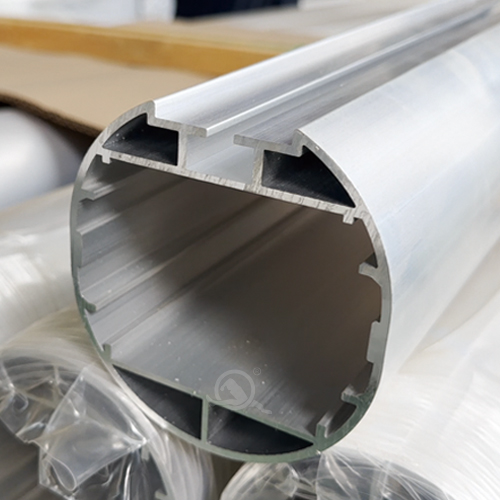

high strength aluminum profile
Alu 110 and Alu80 profile is selected to make soccer goal which will bring outstanding high strenght, unique internal structure will further solidate the whole frame strength.
360 universal wheels
whole frame and unit can be flexible to move in different field according to match plan, for warm up training or professional game.
OVERVIEW

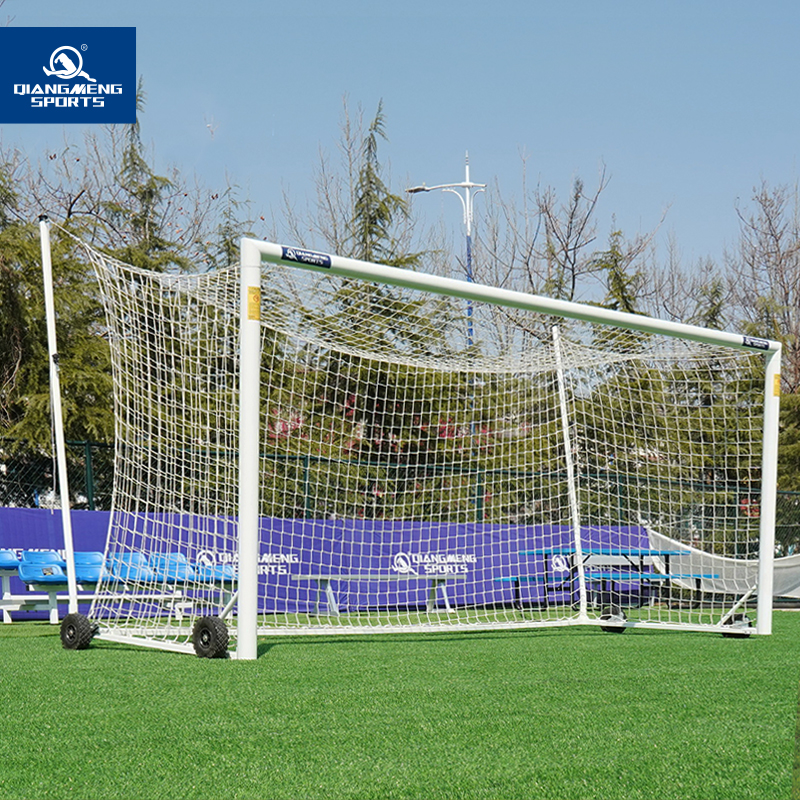

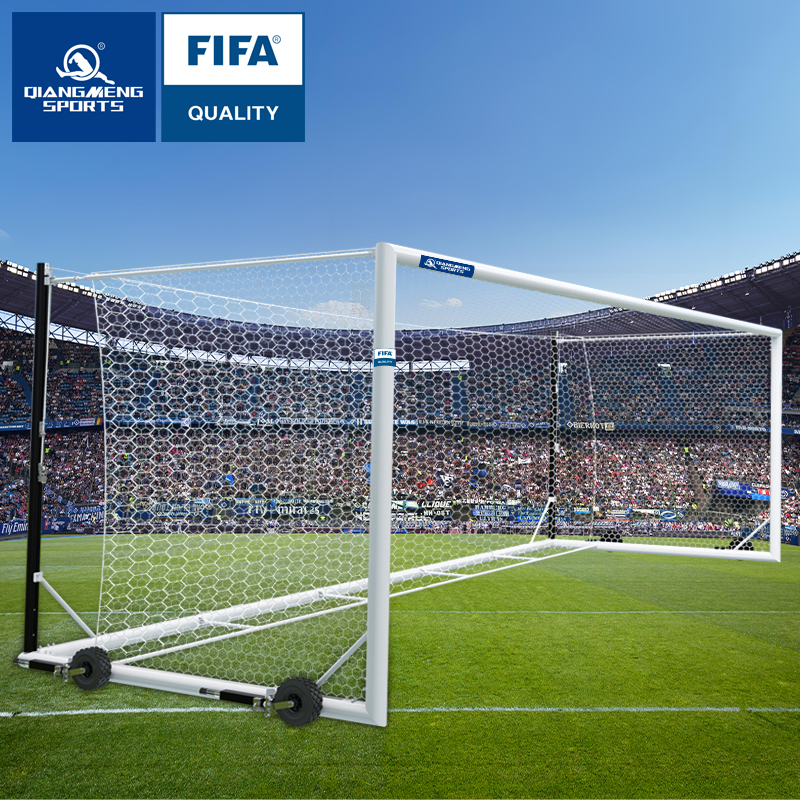

FIFA-certified football goal for 11-a-side senior matches and training, with a full-size 7.32 x 2.44 m / 24 x 8 ft box-style goal opening, 2 m top depth and 2 m bottom depth.
KEY PRODUCT ADVANTAGES
FULL-SIZE MATCH FORMAT
7.32 x 2.44 m / 24 x 8 ft opening for senior matches and training.
ALUMINIUM GOAL FRAME
100 x 110 mm elliptical aluminium profile with 2.5 mm wall thickness for a rigid frame.
NET SUPPORT SYSTEM
Ø80 6061-T6 net support posts and Ø32 galvanized steel rear tubes support the box-goal net arrangement.
MOBILITY AND STABILITY
360° moving wheels and 8 x 12 kg counterweights support relocation and stability.
KNOTLESS PET NET
5 mm PET net with 100/110 mm knotless mesh supports consistent net coverage.
TECHNICAL SPECIFICATIONS
| SPECIFICATION | DETAILS |
|---|---|
| IDENTIFICATION AND DIMENSIONS | |
| MODEL | QMF-1102-FIFA |
| TYPE | Standalone aluminium box-style football goal |
| CERTIFICATION | FIFA-certified football goal |
| GOAL SIZE | 7.32 x 2.44 m / 24 x 8 ft |
| TOP DEPTH | 2 m |
| BOTTOM DEPTH | 2 m |
| WEIGHT AND MOBILITY | |
| NET WEIGHT | 275 kg per goal; 550 kg per pair |
| GROSS WEIGHT | 278 kg per goal; 516 kg per pair. As provided; please confirm before publication. |
| MOBILITY | 360° moving wheels |
| COUNTERWEIGHTS | 8 x 12 kg per goal |
| MATERIALS AND COMPONENTS | |
| MAIN PROFILE | 100 x 110 mm elliptical aluminium; wall thickness 2.5 mm |
| NET SUPPORT POSTS | Ø80 6061-T6 aluminium profile |
| REAR/BACK TUBES | Ø32 mm galvanized steel tube |
| FOOTBALL NET | 5 mm PET; 100/110 mm knotless mesh |
| FINISH | Shot blasting and powder coating |
PACKAGE CONTENTS AND PACKING
2x 5 mm PET knotless braided football nets.
4x net support posts with fittings, tensioners and webbing straps.
2x integrated welded Pro crossbars; 4x rear support tubes; 2x rear cross tubes.
2x stadium box-goal nets (24 ft wide x 8 ft high).
8x dedicated 110 mm profile counterweights, 12 kg each.
8x 360° swivel moving wheels; all bolts, fixings and twist net clips.
Packing for one pair/two goals uses cartons plus pearl cotton mixed packaging: 7600 x 320 x 130 x2; 3870 x 370 x 130 x2; 790 x 510 x 210 x2; 1000 x 330 x 110 x2. Actual packing dimensions prevail.
SUPPLEMENTARY DETAILS
GOAL FRAME +−
The integrated welded Pro crossbars form the box-style goal frame. Inspect the frame and connections before use.
BOTTOM NET FRAME +−
The bottom net frame supports the lower net line and should be kept clear during pitch maintenance.
REAR NET SUPPORT POSTS +−
The rear supports connect the net to the goal structure; check tensioners and webbing before use.
FOOTBALL NETS +−
Attach the supplied nets evenly and check that all net clips and tension points are secure.
INSTALLATION AND SAFETY +−
Follow the installation instructions, secure the goal before use, and inspect connections, wheels, counterweights, net tension and frame condition during maintenance. Do not use damaged equipment or climb on the goal.
RECOMMENDED APPLICATIONS
Suitable for 11-a-side senior football matches and training where a full-size 24 x 8 ft box goal is required.
REQUEST A QUOTE
Request a quote for QMF-1102-FIFA with quantity, venue and delivery requirements.
