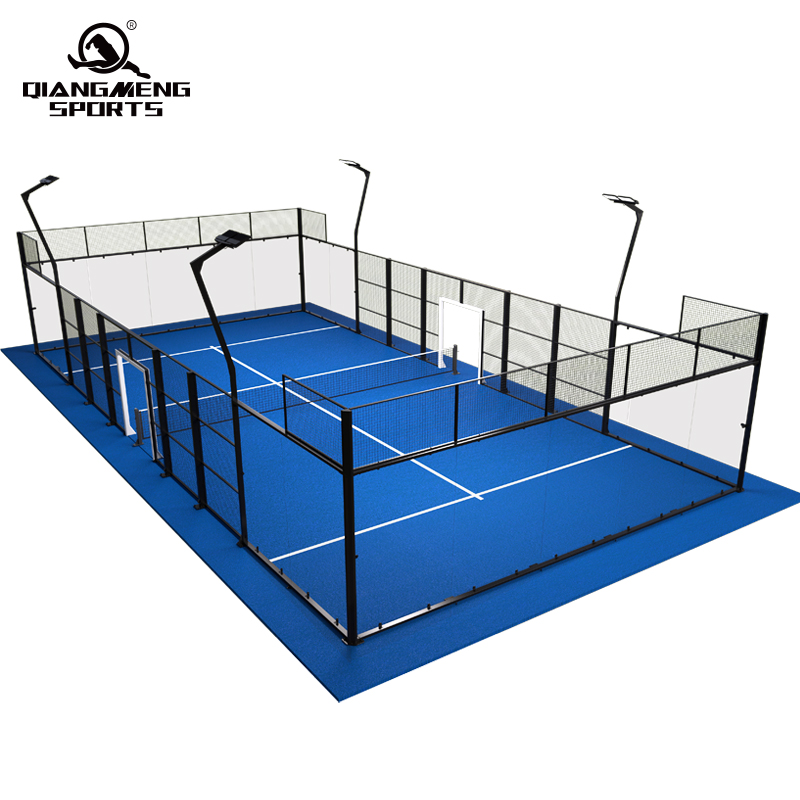

Padel Court

Court Dimensions: 20m (length) × 10m (width). Height is 4m at both ends and 3m in the middle.

Tempered Glass Type: Custom explosion-proof tempered glass. Specifications: 2m × 3m, 18 pieces, 12mm thick. Certified by the professional CCC (China Compulsory Certification).

Columns and Perimeter Fencing: Made of high-quality steel pipes with hot-dip galvanizing. Corner columns: Custom 120mm × 120mm × 3mm diamond-shaped steel pipes; main columns: 100mm × 100mm × 3mm square pipes; crossbeams: 50mm × 100mm × 2.5mm rectangular pipes. The fence frame is fully welded with 50mm × 50mm and 30mm × 50mm square pipes. Fence mesh: 50mm × 50mm holes, 4mm diameter mesh wire.

Light Poles and Lighting System: Light poles are welded with 50mm × 70mm square pipes, 6000mm in height. 4 or 8 sets of LED lamps are available, each with a power of 200W and an IP65 waterproof rating. Light poles are embedded inside the perimeter fencing, providing an illuminance of 300Lux.

Net Posts: Welded with 100mm × 100mm × 3.0mm square pipes, with a built-in cable tensioning structure. The net height at both ends is 920mm.

Installation Method: Expansion tube fixing. Screws are made of 304 stainless steel, which is rust-proof for life.

Surface Layer (Artificial Short Turf - Crimped Type): Standard specifications: Roll width 4000mm/2000mm, length 20000mm, height 12mm. Turf density: 52,500 stitches per square meter. Color: Blue or green (customizable).
