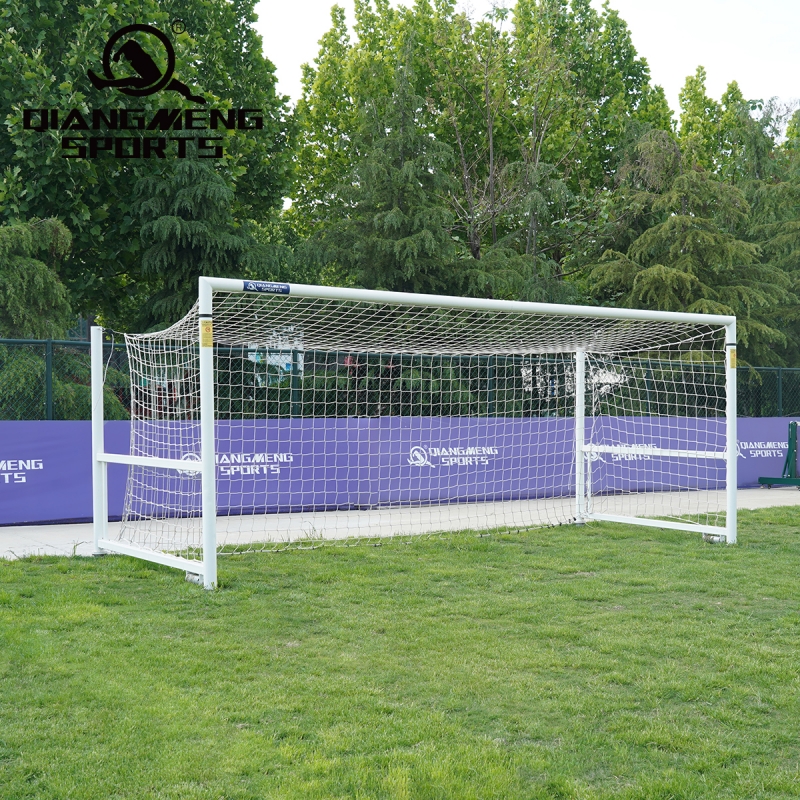

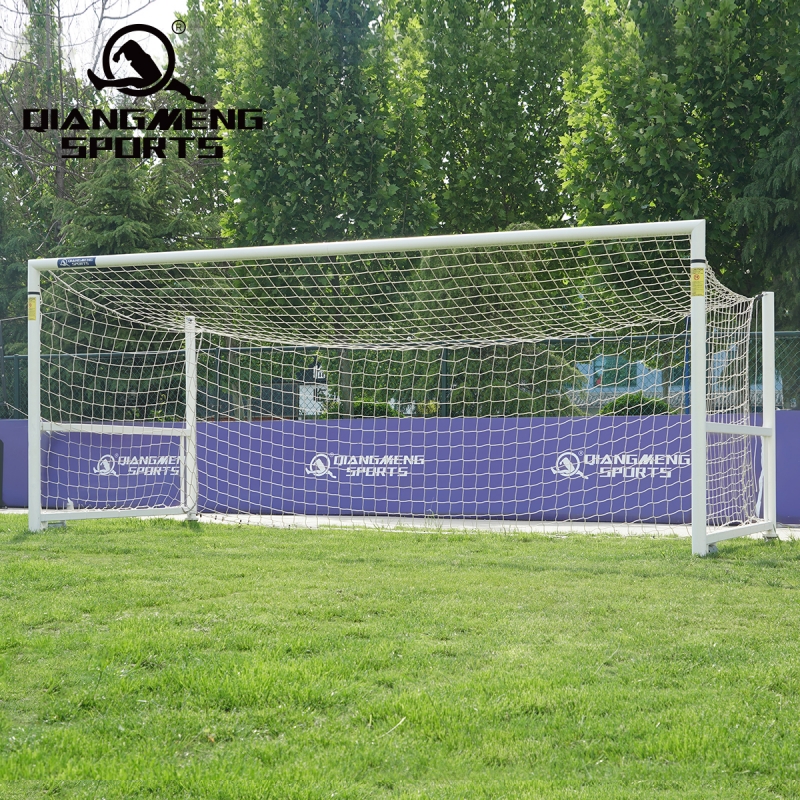

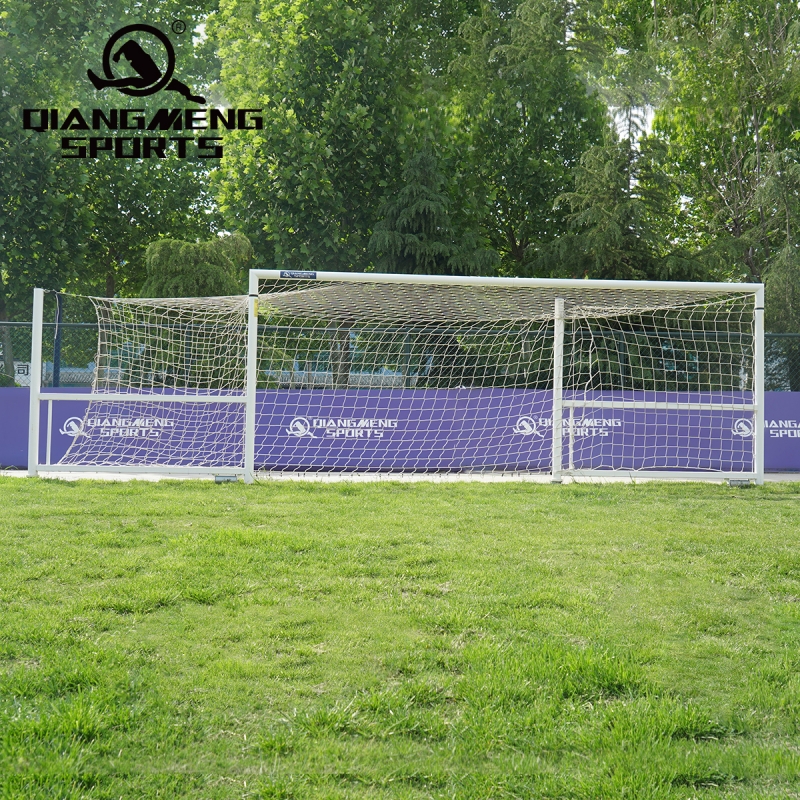

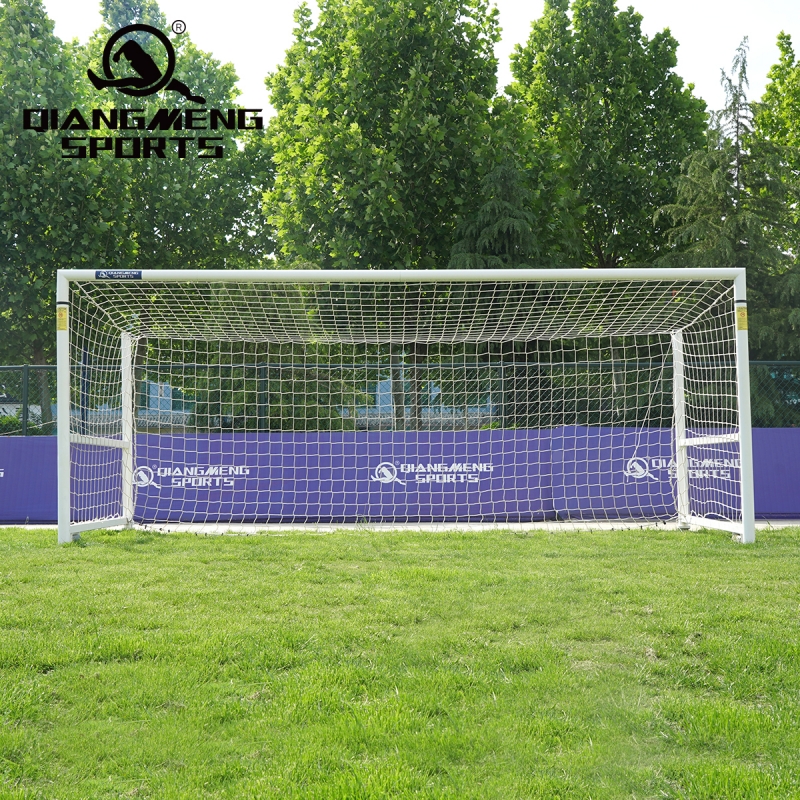

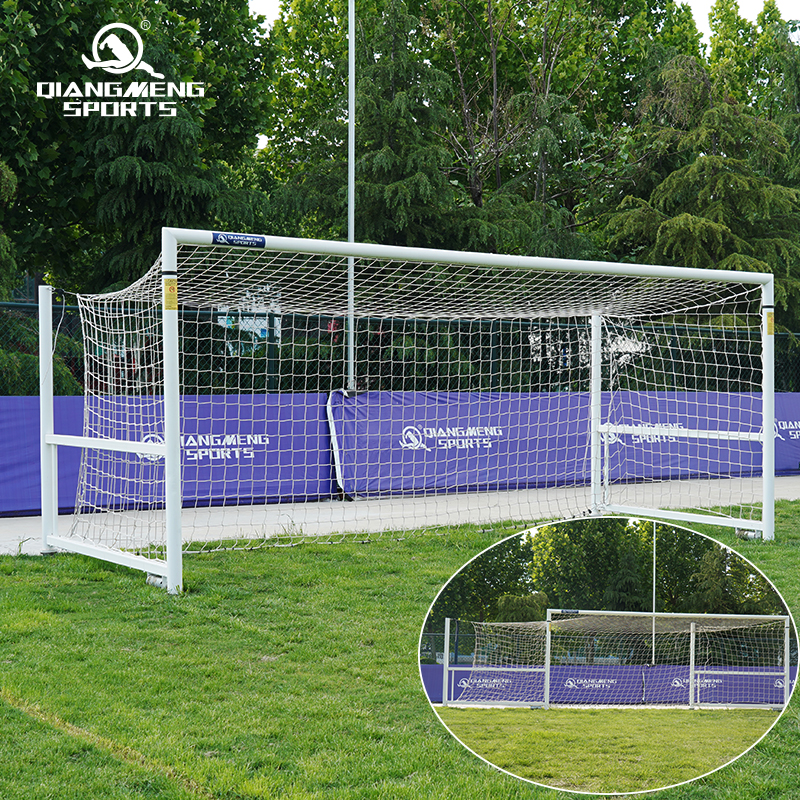

Steel Ground-Installed Left-and-Right Folding Football Goal (QMF-ST700F / QMFS-ST700F Split)

Professional ground-socket folding football goal with telescopic side frames, 90° left/right push-pull folding and rollers for space-saving lawn maintenance.

A heavy-duty ground-installed football goal for schools and multi-purpose public pitches. The 5.0 x 2.0m goal uses a Ø89mm steel tube frame, telescopic side frames and left/right 90° folding movement to help free the playing surface for lawn maintenance. Final net thickness and internal depth configuration are subject to technical confirmation.

QMF-ST700F / QMFS-ST700F Split Football Goal Details

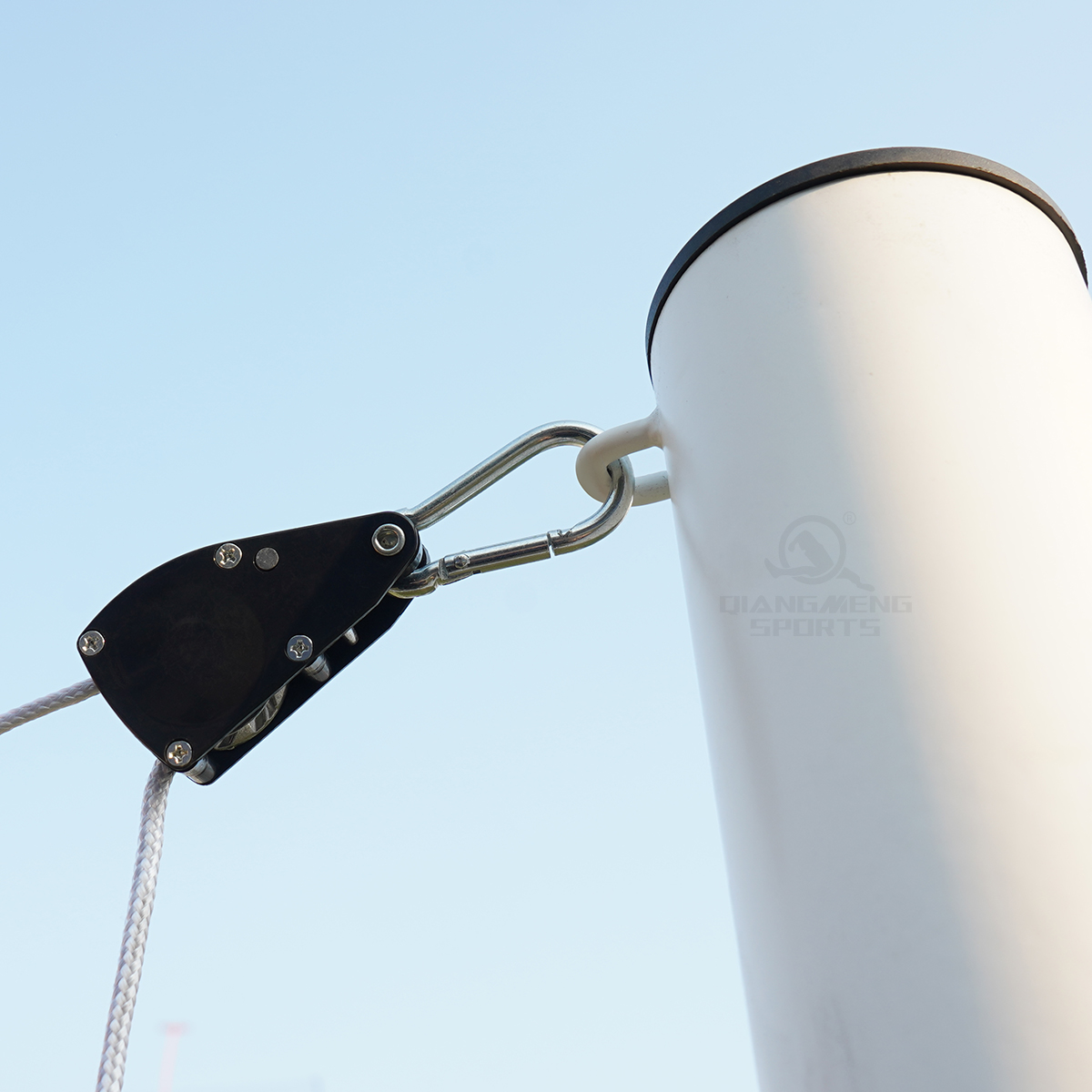

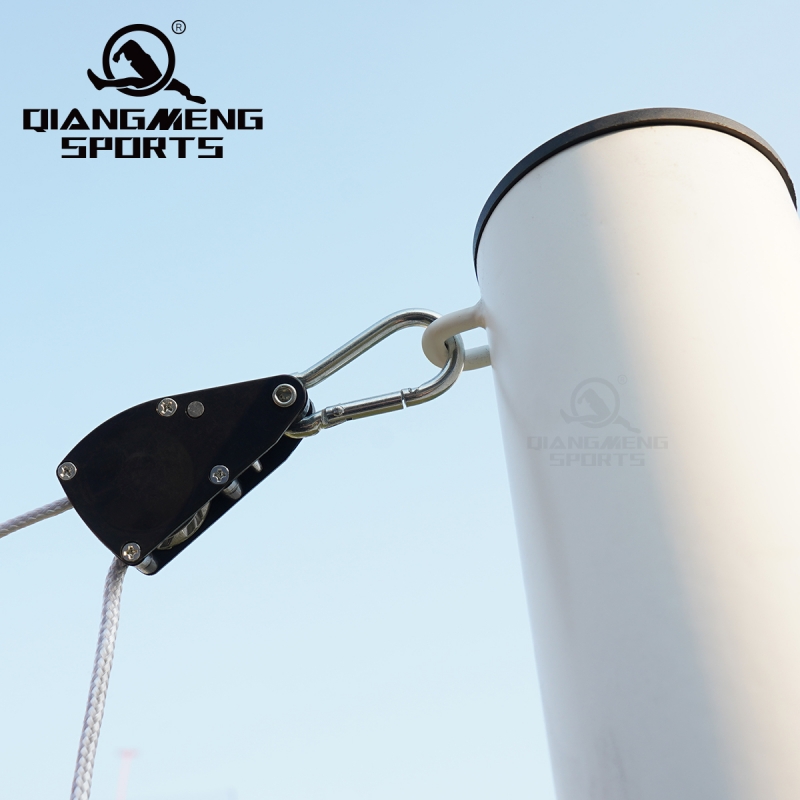

Ratchet Tightener · Quick Net Setup

Durable ratchet system allows fast and precise net tension adjustment.

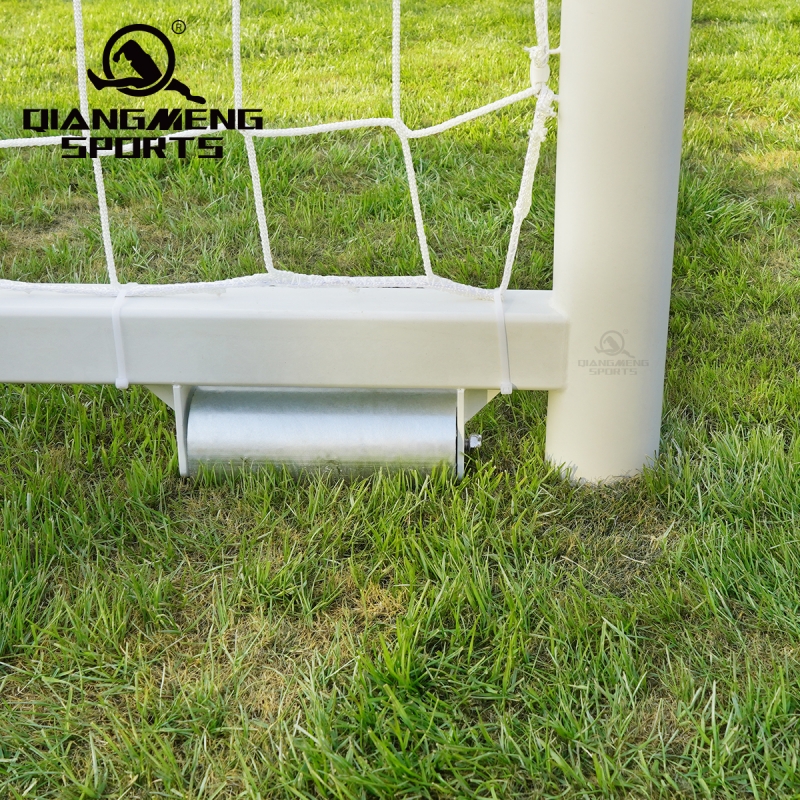

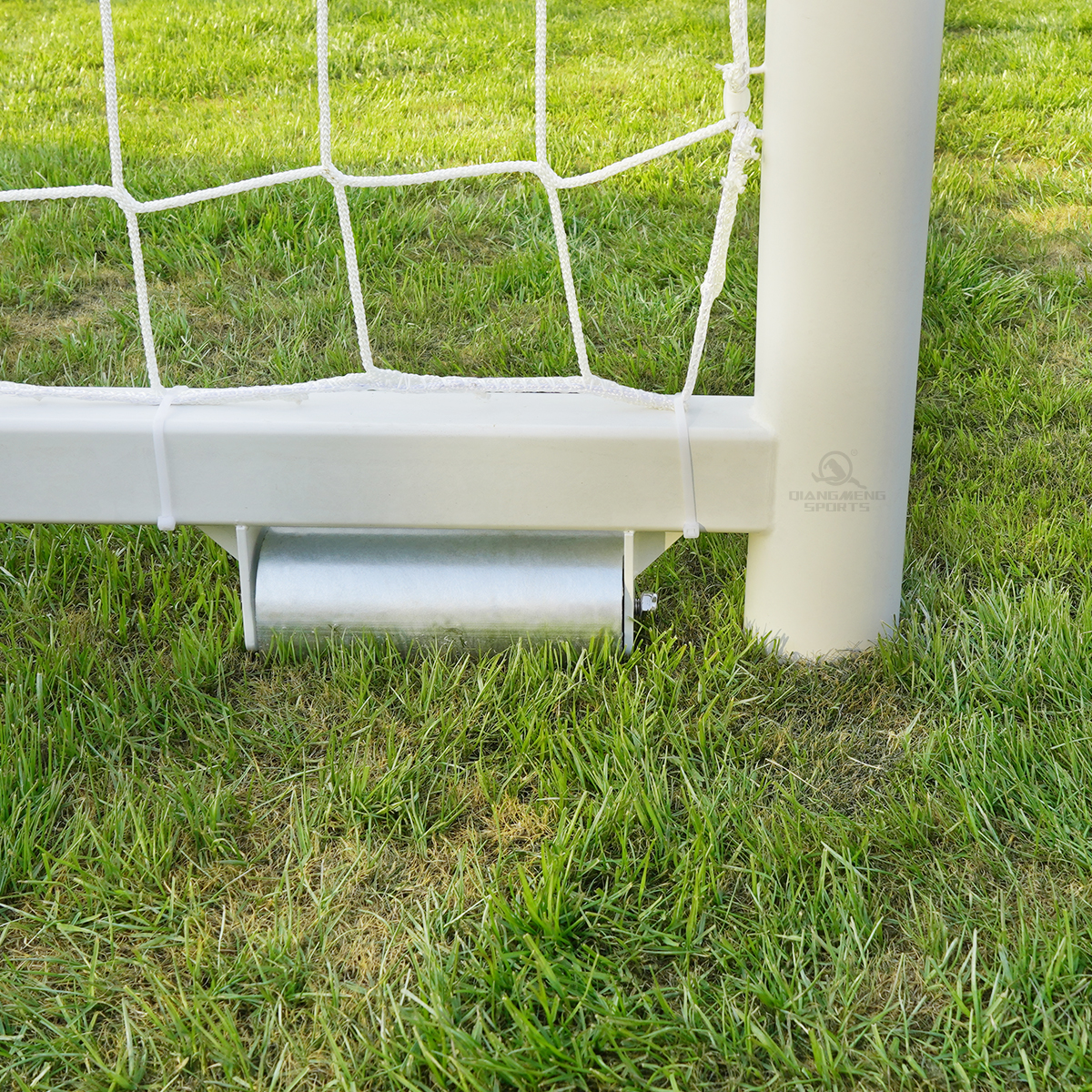

Roller Support · Easy Mobility

Equipped with large rollers for effortless movement and positioning

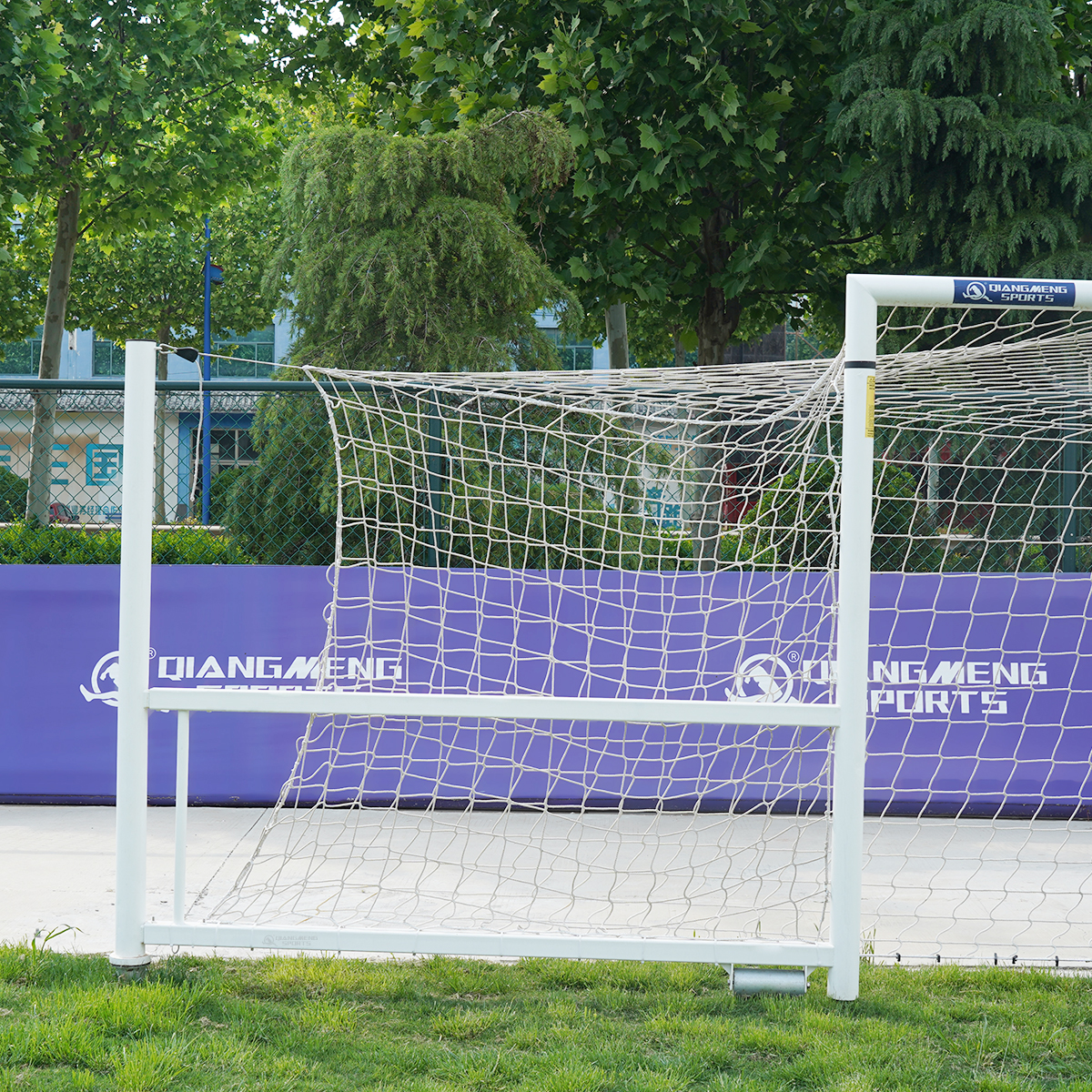

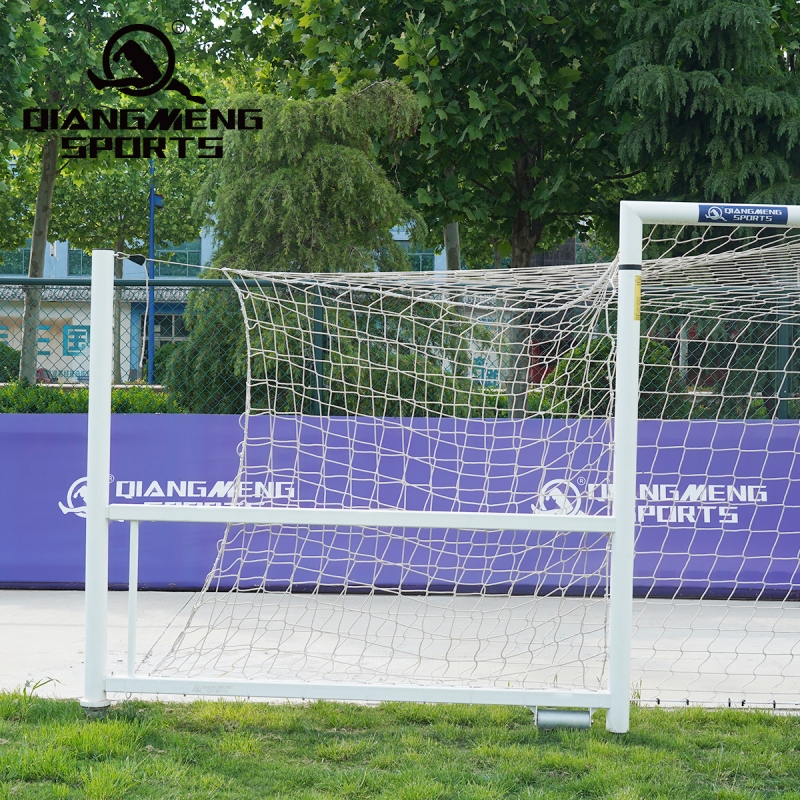

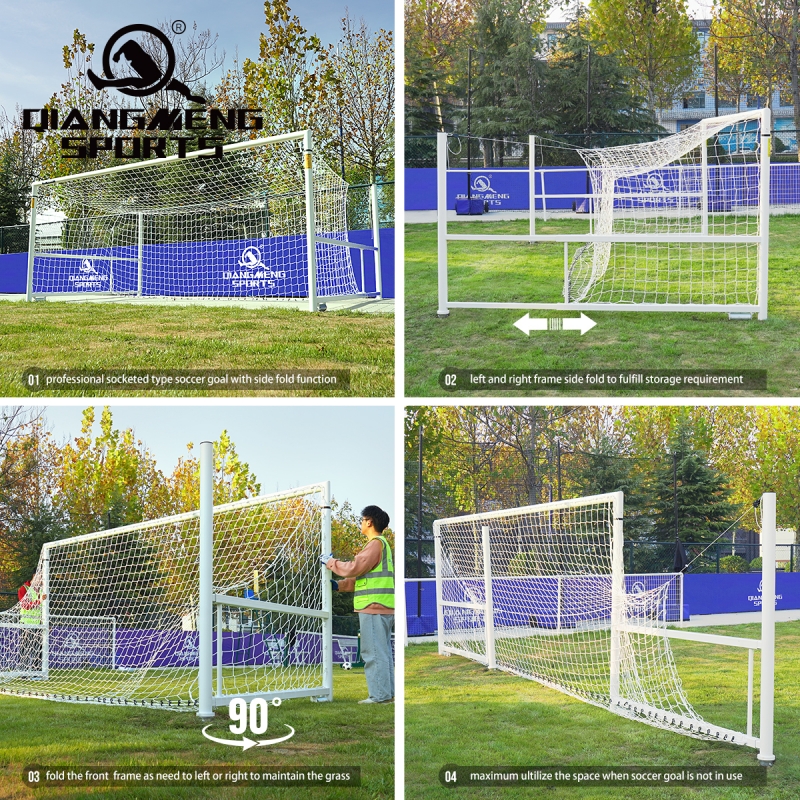

Foldable Design · Space Saving

90° foldable frame provides extra field space and easier maintenance.

Overview

Professional ground-socket football goal for permanent installation on school and multi-purpose public pitches. The left/right folding design combines a heavy-duty steel frame with telescopic side frames, rollers and rear height limiters to help clear the playing surface when required.

Key Product Advantages

Ground-installed structure with correctly concreted ground sockets for stable use.
Left/right push-pull folding through 90° to save space and support lawn maintenance.

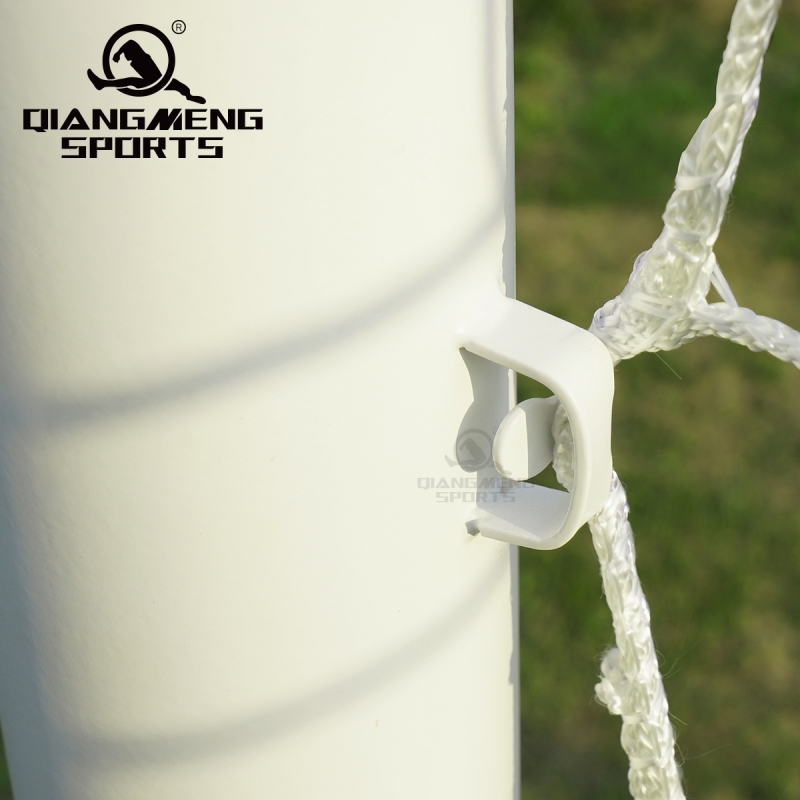

Telescopic side frames using 50x50mm and 60x60mm connecting bars, with fully welded corners and integrated net hooks.
Heavy-duty pressure bearings and larger-contact galvanized rollers for smoother movement.
Suspended ratchet tensioner and rear net support height limiters for controlled net setup.

Technical Specifications

Item	Specification
Product type	Ground-installed, left-and-right folding football goal
Model	QMF-ST700F / QMFS-ST700F Split
Goal size	5.0 x 2.0m / 16.5 x 6.5ft
Net weight	142kg per goal; 284kg per pair
Top and bottom depth	2m / 2m (source parameter; internal depth wording requires technical confirmation)
Main tube	Ø89mm steel tube, 2.0mm wall thickness
Net support	Ø89 x 2mm steel tube; rear height limiter
Back connecting bars	Outer 60x60mm square tube; inner 50x50mm square tube
Net	3mm braided PET, 100mm knotless mesh, 4-corner shape (accessory listing also states 5mm; technical confirmation required)
Rollers	Galvanized Ø89mm rollers
Finish	Shot blasting and powder coating; galvanized/chrome-plated connecting parts; stainless-steel bolts

Product Components / Package Contents

2 x 5mm PET knotless braided nets (accessory listing; net thickness requires technical confirmation).
4 x outer post frames with accessories and ground sleeve sockets.
4 x inner rear post frames.
2 x crossbars.
2 x football goal nets.
4 x rollers and height limiters.
All bolts and fixings.
Packaging: 2 cartons, each 2600 x 760 x 150mm; one pair includes two goals. Carton plus pearl-cotton protection; actual packaging may vary.

Installation and Safety

Check stability before use and follow the manufacturer’s instructions.
Secure all fasteners; do not climb on the goal.
Ensure ground sockets are correctly concreted.
Inspect fixings and nets regularly; avoid prolonged exposure to extreme weather.

Recommended Applications

Schools and multi-purpose public pitches requiring a permanent, space-efficient football goal system.

Request a Quote

Contact us for drawings, technical confirmation of the net and internal-depth values, installation guidance and a project quotation for the QMF-ST700F / QMFS-ST700F Split.
