QML-A05 Spring-Assisted Folding Basketball System - 72" Tempered Glass Backboard and Portable Competition Stand

PRODUCT INTRODUCTION

Feel confident in our superior strength, safety, and reliability. The QML-A05 Spring Foldable Basketball Hoop is one of the most versatile portable solutions available for schools, gymnasiums, and sports halls. Featuring a precision spring-lift system, this stand can be easily deployed to professional competition levels for athletes of all ages. Built for high-intensity indoor play, it combines stadium-grade durability with an effortless folding mechanism for convenient storage.

KEY FEATURES

SPRING-ASSIST FOLD SYSTEM: Equipped with an industry-leading spring assistant mechanism, allowing a single operator to lift or fold the unit quickly and safely without heavy manual effort.

ARENA-GRADE BACKBOARD: Features a 1.83m x 1.05m (72" x 42") clear-view tempered glass backboard with a professional 12mm (0.47") thickness for true rebound performance and high impact resistance.

DUNK-READY RIM: Includes a Φ20mm (0.79") solid round steel double-spring breakaway rim, designed to handle high-impact dunks and maintain structural integrity.

COMPREHENSIVE PLAYER SAFETY: The base and post are fully covered in high-density safety padding to protect players during aggressive play. Custom colors and graphics are available.

SUPERIOR MOBILITY: Built with 4 heavy-duty wheels, the unit can be easily maneuvered across the court and positioned precisely by one person.

RUGGED STEEL CONSTRUCTION: Made from high-quality structural steel with a UV-resistant powder-coated finish for long-lasting durability in demanding environments.

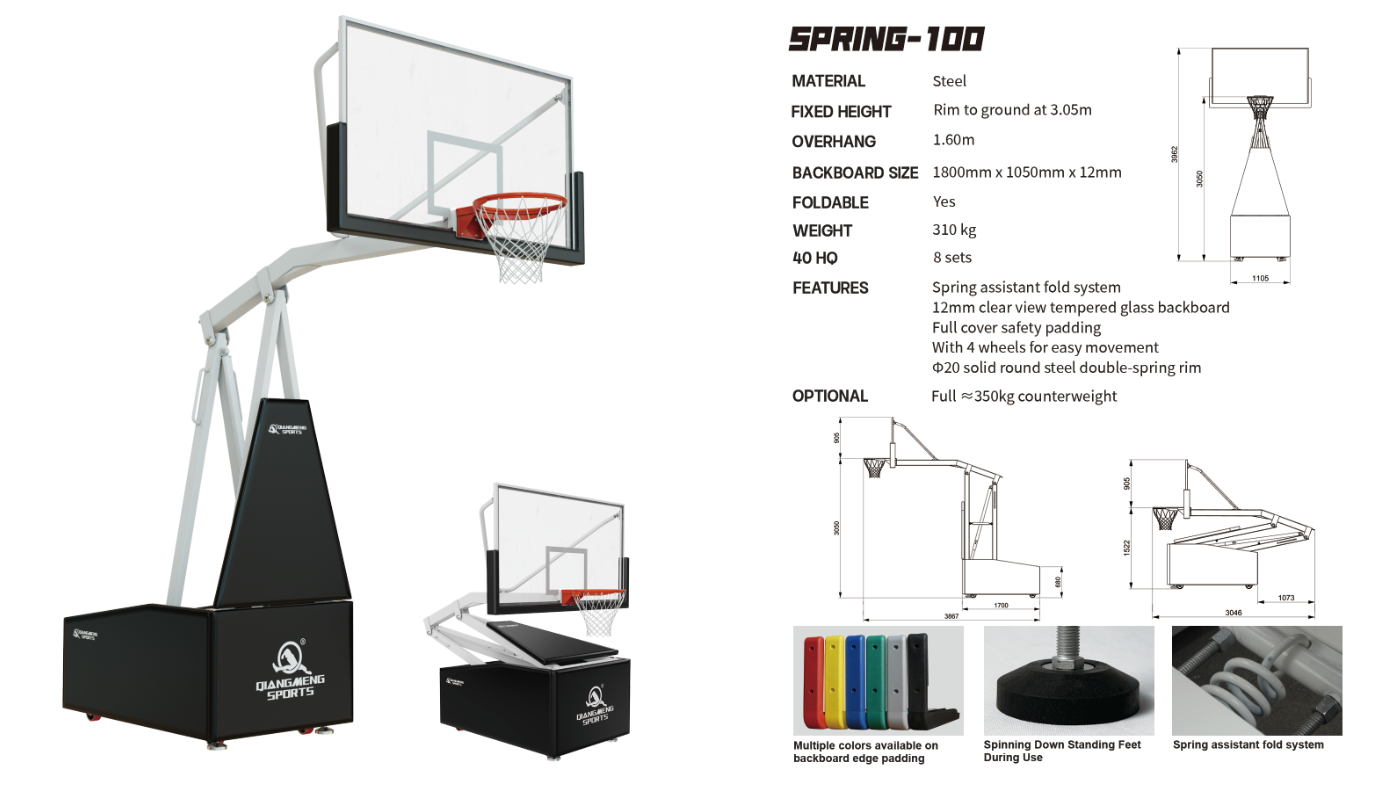

TECHNICAL SPECIFICATIONS

Model Name: QML-A05 (SPRING-100)

Frame Material: High-Grade Structural Steel

Fixed Rim Height: 3.05m (10')

Arm Extension (Overhang): 1.60m (5' 3")

Backboard Dimensions: 1.80m x 1.05m (72" x 42")

Backboard Thickness: 12mm (0.47")

Foldable Design: Yes, with Spring-Assist Mechanism

Unit Weight: 310 kg (approx. 683 lbs)

Optional Counterweight: Total approx. 350 kg (approx. 771 lbs)

Wheel System: 4 Integrated Mobility Wheels

Rim Specification: Φ20mm Solid Double-Spring Breakaway Rim

Shipping Capacity: 8 sets per 40' HQ container

CONTACT US

Optimize your facility with the QML-A05 folding basketball system. Contact our team today for a professional quote, international shipping details, and our full indoor sports equipment catalog.
